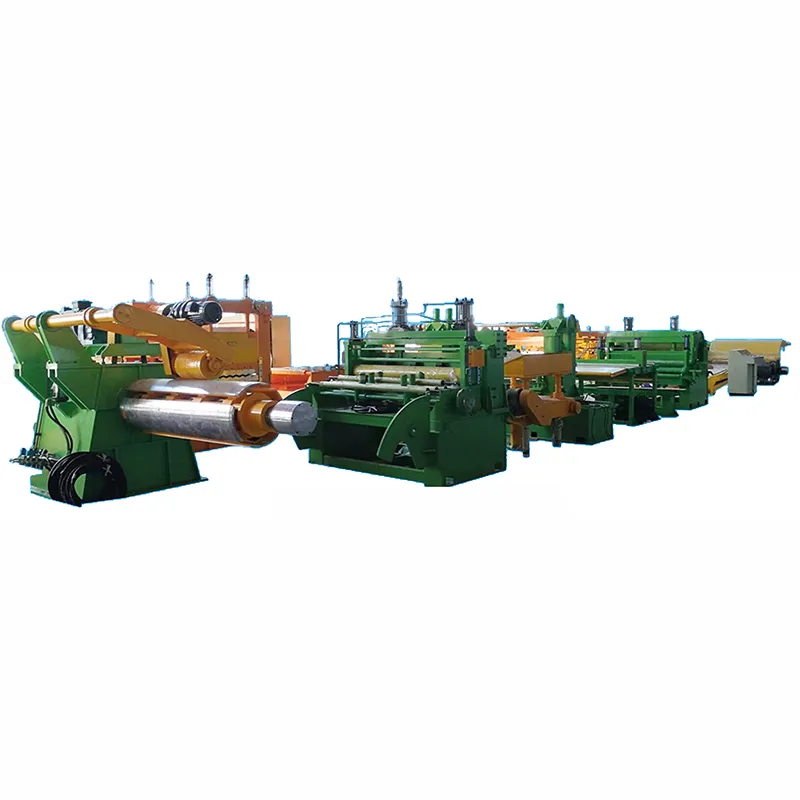

steel coil slitting machine is an efficient and multifunctional equipment widely used in construction, automobile, packaging and other industries. It is designed to cut large coils of steel into several smaller coils of specified width and length.
Working principle of steel coil slitting machine
Coil slitters cut the coil by passing it through a succession of revolving blades for accurate, clean cuts. The slitting process may be tailored to individual client requirements, such as the quantity and breadth of coils, steel thickness, and tolerances required for each cut. Typically, the following actions are taken:

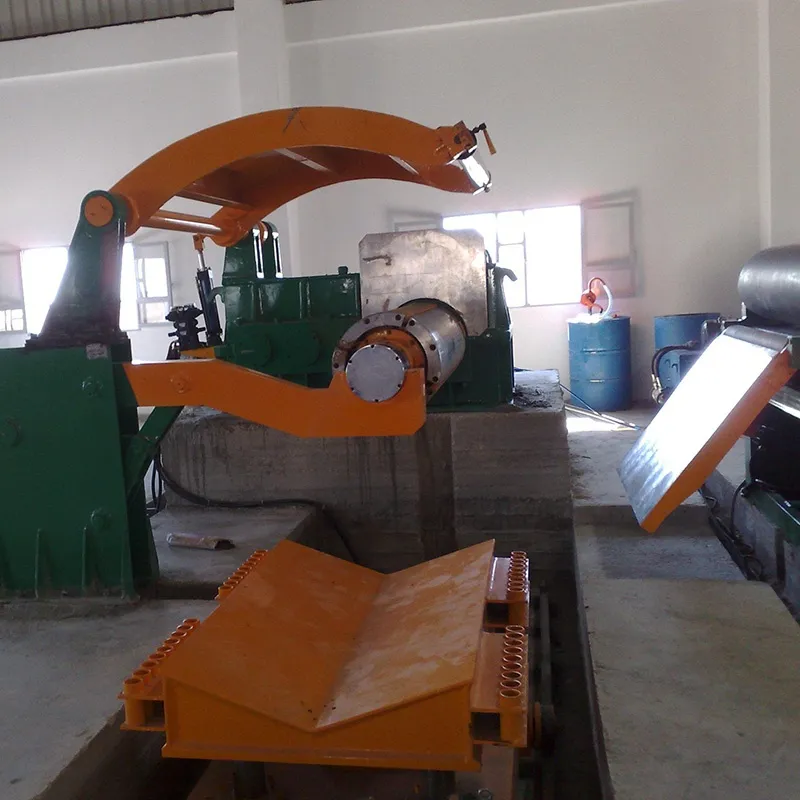

- Loading: Place huge steel coils on the coil slitting or coiling machine’s loading table. Typically, a coiling machine is used to put the steel coil onto the slitting machine, and the steel coil is secured to the machine by a tensioner.
- Lead and Tension Control: Leads the end of the coil into the slitter’s cutting area. A tension control system is often used in the lead-in process to assure the stability of the steel strip during the cutting process by changing the tension.
- Positioning and sizing: the coil goes through the positioning device to establish the cutting start point. The cut length is then determined by the required width. This is often accomplished via a control system or an automated counter.

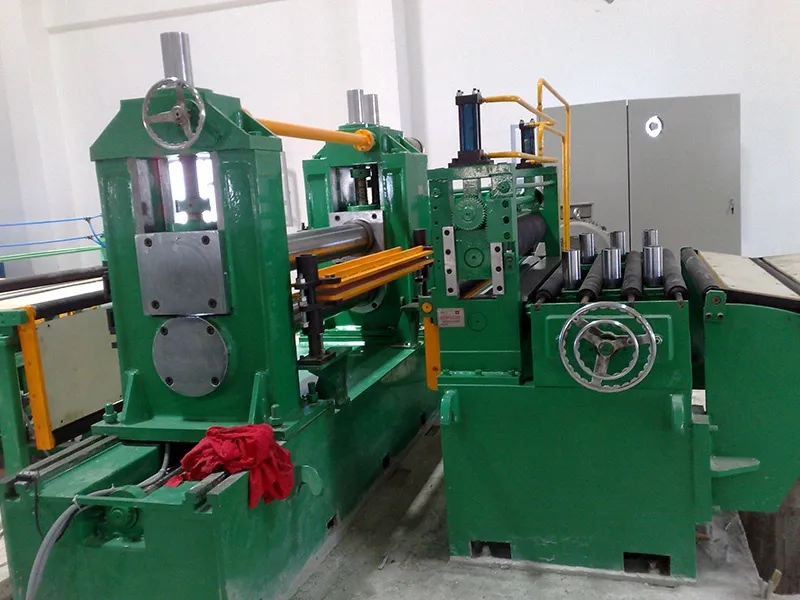

- Cutting: A cutting equipment, such as a disc knife or blade set, is used to cut the coil. A high-speed revolving blade on the cutting equipment typically slices the steel strip by placing it over the blade and providing sufficient pressure.

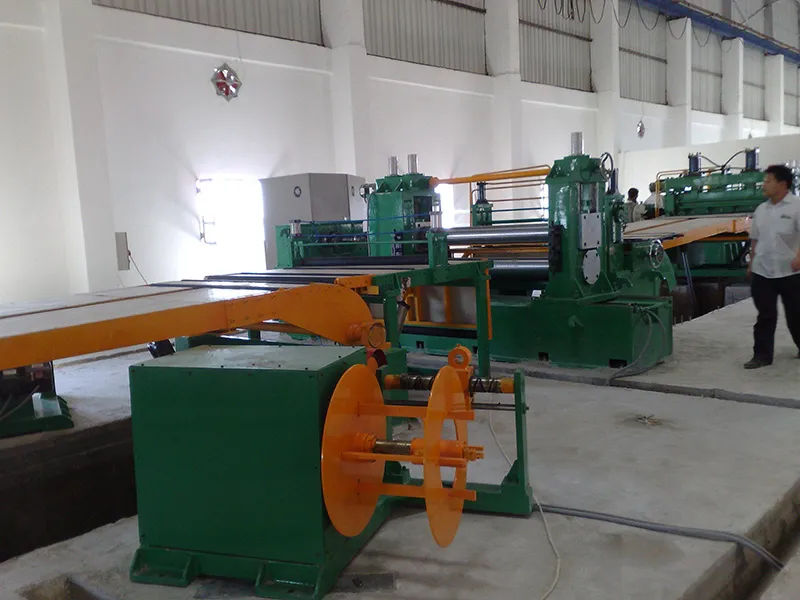

- Separation and winding: A winding mechanism separates the split thin strips and winds them into smaller drums or coils. Winders often contain tension controls that may be adjusted to maintain stability and tightness throughout the winding operation.
- After cutting and winding, the narrow steel strip is ejected from the machine’s output port and enters the next processing or packaging step.
WORKING VIDEO FOR STEEL COIL SLITTING MACHINE
Steel coil slitting machine cutting size
Coil slitters are available in a variety of sizes and designs, ranging from small manual devices to huge automated systems. It can cut coils weighing up to 20 tonnes and widths up to 2000mm and can handle a wide range of materials including steel, aluminum, copper, and brass.
Size range of common steel coil slitting machines:
- Cutting width: The steel coil slitting machine‘s cutting width is typically between a few millimeters and several meters, and the particular range may be modified based on the demands. Common measurements include 600mm, 1000mm, 1250mm, 1500mm, and 2000mm.
- Cutting thickness: The steel coil slitter may handle steel coils of various thicknesses, which typically vary from tens of microns to several millimeters, and the particular cutting thickness range is also determined by the design and configuration of the equipment.
- Coil diameter and weight: A coil slitter’s coil diameter and weight will also effect its size. Large coil slitters are designed to handle greater diameter and weight coils, whilst tiny coil slitters are designed to handle smaller coils.
Advantages of steel coil slitting machine
Coil slitters provide better efficiency, less waste, and higher accuracy. It is easier to handle, transport, and store smaller coils. It also lowers material waste throughout the manufacturing process, resulting in considerable cost savings. The following are the specific advantages:
- Efficient production: The steel coil slitter operates automatically, allowing it to cut steel coils swiftly and correctly. When compared to hand cutting, it may greatly enhance production efficiency while saving labor and time.
- Precise cutting: The steel coil slitter has a precise cutting device and control system that allows for accurate cutting size and flatness. It can satisfy the needs of high precision cutting while also ensuring product quality uniformity.
- Flexibility and adaptability: The Marklin steel coil slitter features adjustable cutting width and cutting thickness to accommodate diverse steel coil cutting specifications and requirements. It can handle various coil kinds, providing better flexibility and adaptability.
- Automatic control: The steel coil slitting machine from Marklin is outfitted with an innovative control system that includes automatic operation and monitoring capabilities. The operator simply needs to execute basic setup and monitoring, and the machine will finish the cutting operation automatically, eliminating human mistake and operating dangers.
- Steel coil slitting machines may efficiently utilize steel coil material while minimizing scrap and waste. It can precisely cut the desired size steel strip, eliminating waste and cutting manufacturing costs.
- Enhanced safety: To enhance operator safety, marklin coil slitters are outfitted with safety protection devices such as safety doors, emergency stop buttons, and so on. It has a closed construction and a reasonable safety design, which reduces the possibility of accidents and injuries.
Roofing, cladding, fence, and slitting are all applications for coil slitters. It is also utilized in the manufacturing of packaging materials such as tinplate and aluminum foil.
In general, the steel coil slitting machine is an important piece of equipment in the steel processing sector. Its ability to create accurate, clean cuts and adjust the slitting process to individual client demands aids firms in increasing productivity and lowering costs.
